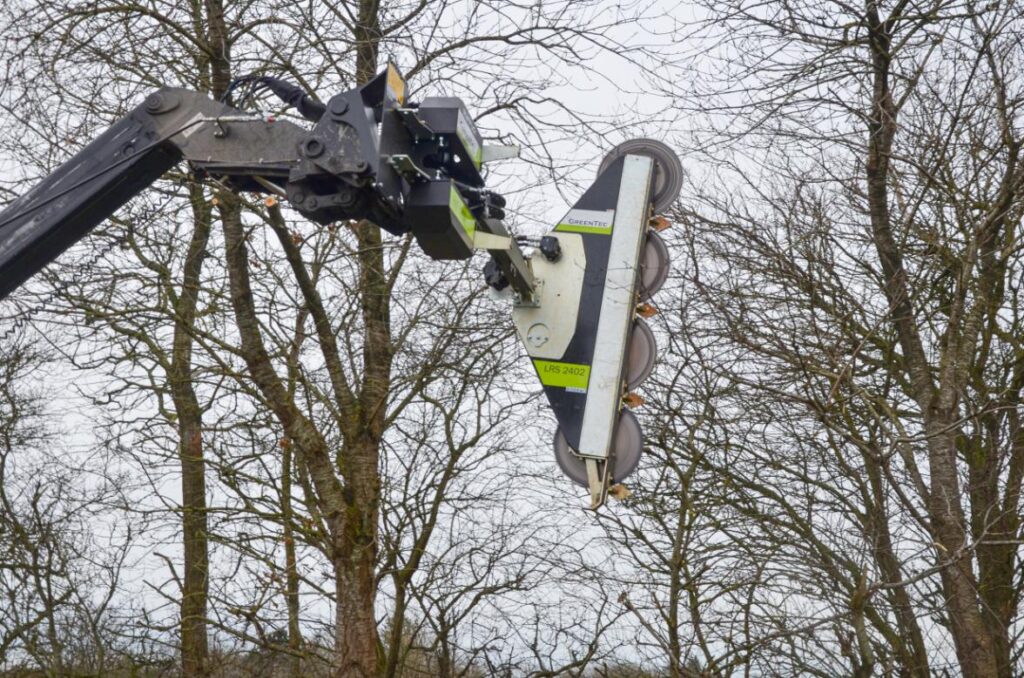

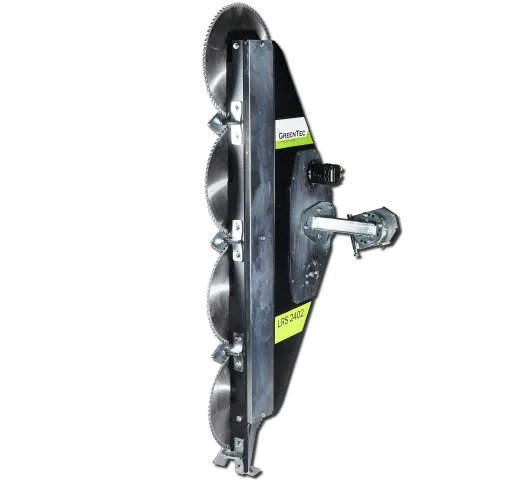

The Quadsaw LRS 2402 wields four circular blades with carbide tipped teeth that are extremely sharp and provide a smooth cut of branches and limbs up to 21 cm (8.27”) in thickness. The cutter has many uses, such as hedging, trimming back hedgerows/windrows, maintaining paths and roadside clearing as well as for utility works.
The Quadsaw LRS 2402 cutter has a huge capacity as it has a large working width of 2.4 m (7’10”). We can maintain a high driving speed of 5 km/h achieving the highest possible efficiency. The cutter is ideal for customers with larger hedges or windrows or any vegetation needing clearing.

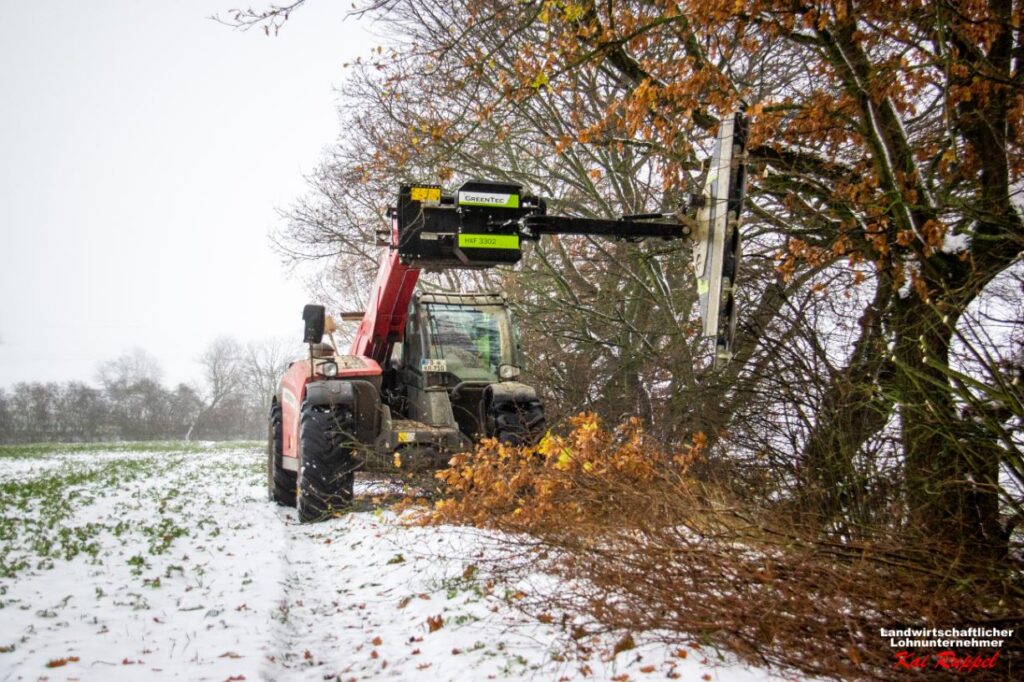

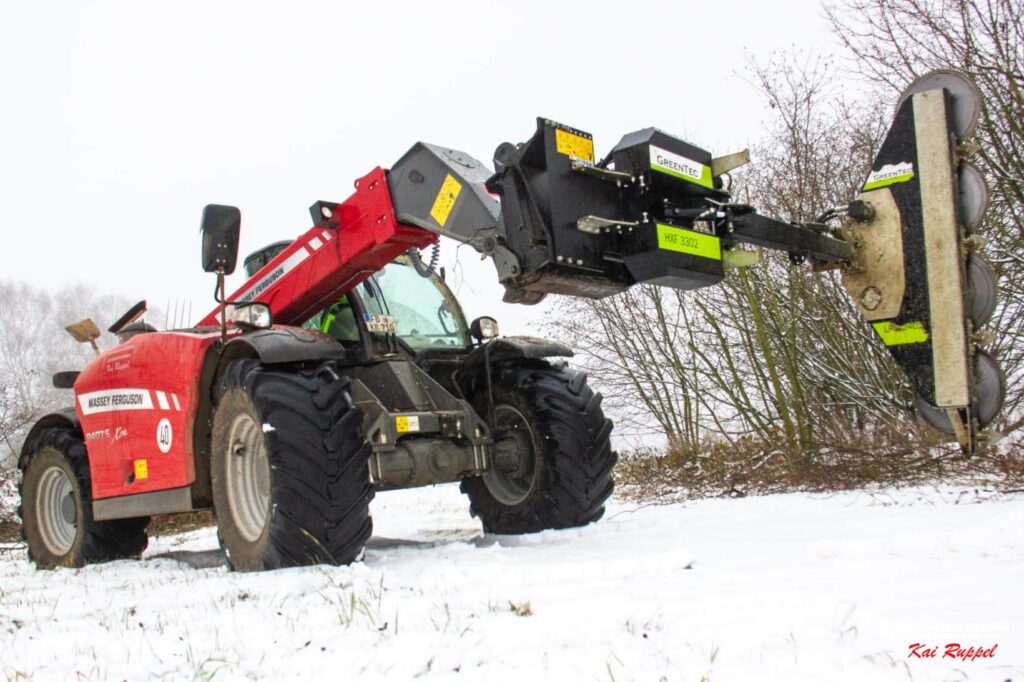

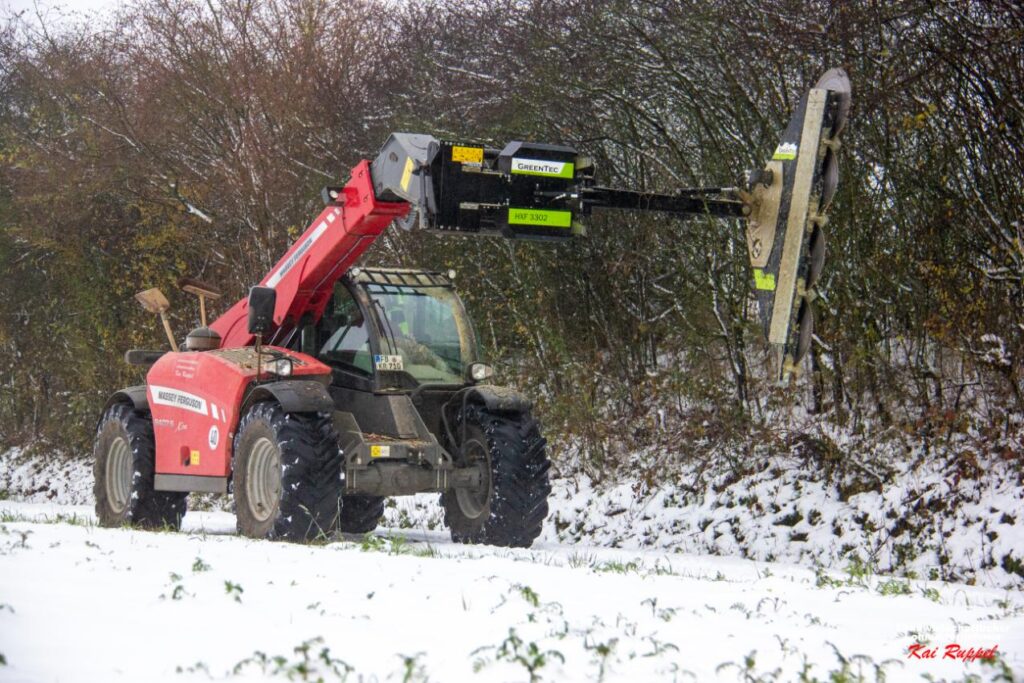

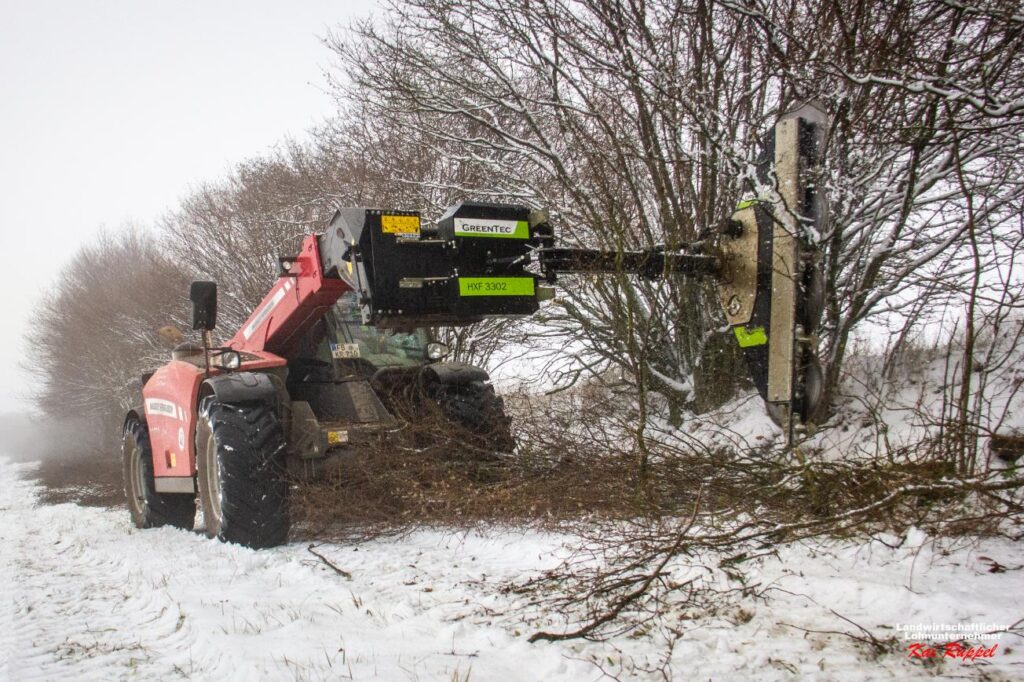

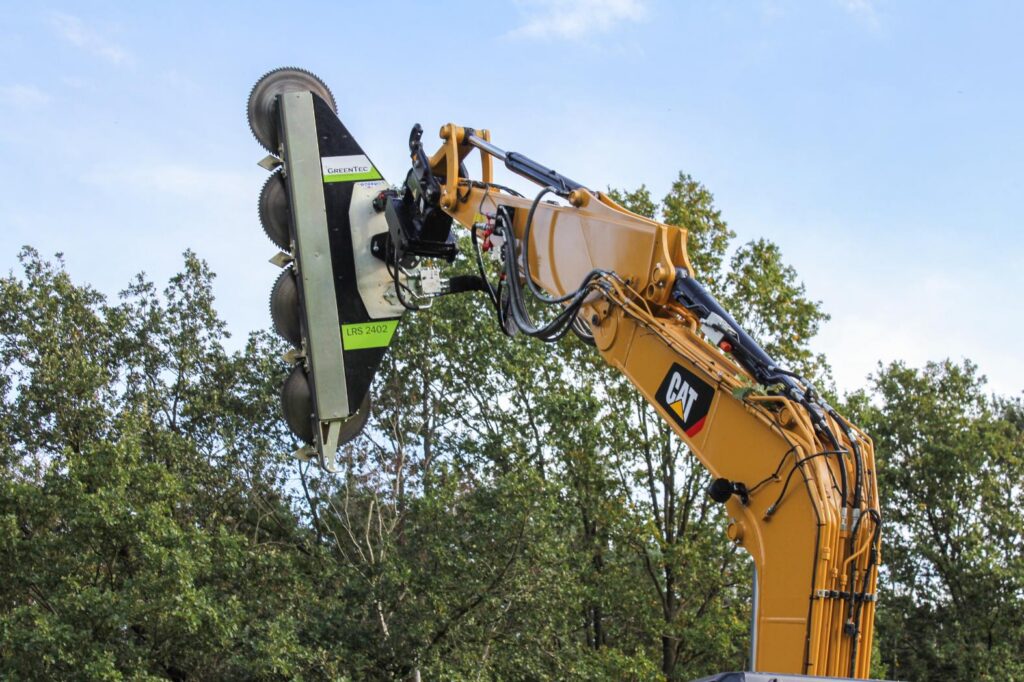

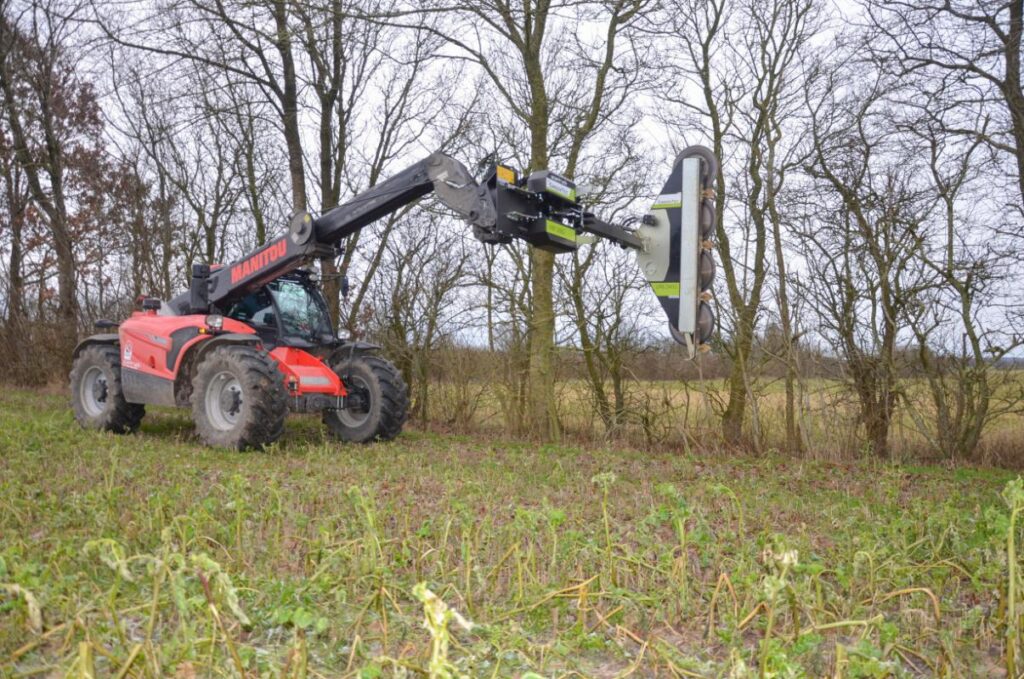

The Quadsaw Hedger coupled with the Puma 3303 tele mount provides the versatility needed to get the job done fast and to the highest possible standard. The cutter unit and tele mount is fitted to our John Deere tractor for the best access to your job and can be mounted to telehandlers for addition versatility and reach.
| Working width | 2.4 m (7'10") |
|---|---|
| Sawblades with Widia teeth | 4 pcs: Ø 59.5 cm (4 pcs: Ø 1'11") |
| Branch thickness | 0.5 – 21 cm (0.20" – 8.27") |
| Required hydraulic connections | 1 x double acting + 1 x drain |
| Minimum oil flow, 28ccm motor | 86 l/min @ 150 bar (22.5 gpm @ 2176 psi) |
| Alternative oil flow, 15 ccm motor | 51 l/min @ 180 bar (13.2 gpm @ 2611 psi) |
| Blade speed | 3200 rpm |
| Driving speed up to | 5 km/h (3.11 mph) |
| Weight | 239 kg (527 lb) |
